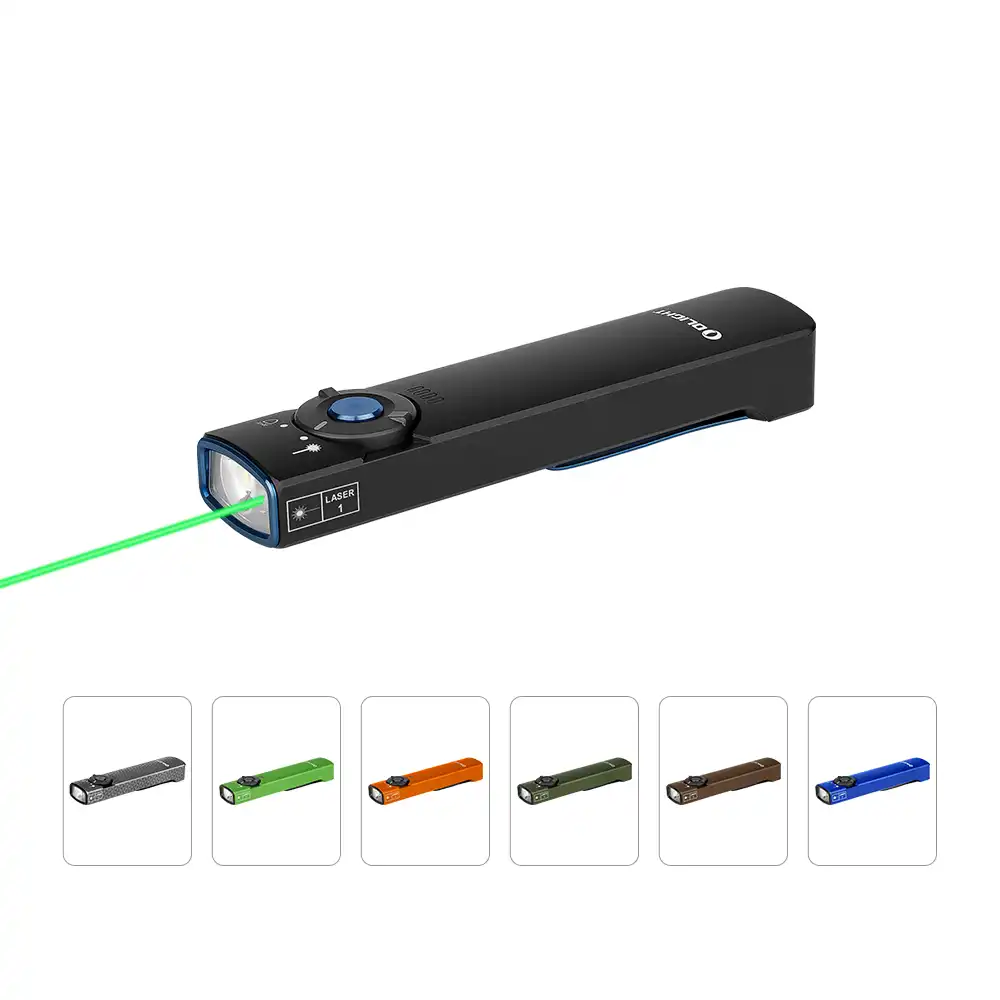

*The Arkfeld ships in lockout mode. While in lockout mode, the red indicator at the bottom will light up for a short time. Press and hold the center button (about 1 second) until the flashlight turns on with the moonlight or laser, and the flashlight will be unlocked.
FAQ
Q1: How do I use the lock-out function?
A1: The Arkfeld ships in lockout mode. While in lockout mode, the red indicator underneath the switch will light up quickly. Press and hold the center button (about 1 second) until the flashlight turns on with the moonlight or laser setting. Then it is unlocked.
Q2: Why is there a horizontal line on the green beam point?
A2: There may be some dirt on the lens, just wipe it with a cleaning cloth.
Q2: Why is Arkfeld's laser not as bright as the Baldr S WML?
A3: The Arkfeld's laser is CLASS 1 with a max output of 0.39mW, while the laser of the Baldr S is CLASS 3R with a max output of 5mW.
MATERIALS
Body Material
Aluminum Alloy
GENERAL DATA
Beam Distance
331 ft (101 m)
Max Performance
1,000 lumens
Charging Type
MCC3 Magnetic USB Charging
Compatible Batteries
Built-in 1050mAh Lithium Polymer Battery
Max Light Intensity
2,560 candela
Light Source
High-Performance Neutral White LED (4000k~5000K), High-Performance Cool White LED (5700K~6700K)
Mode Operation
Central Button & Selector
LIGHTING LEVELS
Turbo
1,000~300 lumens
Run time Turbo
4 + 110 minutes
High
300~60 lumens
Run time High
126 + 34 minutes
Med
60 lumens
Run time Med
11 hours + 50 minutes
Low
15 lumens
Run time Low
41 hours
Moon
1 lumen
Run time Moon
8 days
Strobe
Yes
SOS / BEACON
No
TECHNICAL CHARACTERISTICS
Waterproof
IPX7
Weight
3.07 oz (87 g)(Battery Included)
Height
0.59 in (15 mm)
Length
4.33 in (110 mm)
Width
0.98 in (25 mm)
Packaging
Carton Box
Use
Lighting, Presentation, Pet Toy
PACKAGE CONTENTS
●
Arkfeld (Battery Included) x 1
●
MCC3 Magnetic USB Charging Cable x 1
●
User Manual x 1
No comments yet
Post a comment >>
Share your experience
Chronological Order | Default Sort Order
My only wish is that the laser pointer was aligned with parallel to the side or perpendicular to the base. Use it everyday as a flash light or a pointer. To be able to use as a reference point would be awesome. At 10' from side to side there is a 3" swing.
J****
Mar 31, 2023, 00:38:41
The Arkfeld has become my new everyday carry pocket flashlight for regular task. It a nice simple light to have around working behind a desk. The laser pointer is great to in order to point out things from my desk to others, LOL. As well as for a presentation.
J****
Mar 31, 2023, 00:25:37
I love the way the light sits flat and forget it is there. I was very disappointed with the power of the laser. I spent 15 years working crime scenes and using lasers. This one is too weak for much except plsying with a pet. That being said the white light is great and I have now purchased the UV model that is an awesome power. I have spent close to $100 for us alone unknown brands that were not close to the quality, not to mention 1/2 the size plus the great white out put!
R****
Mar 31, 2023, 00:00:11
Like the little light wish the laser was stronger but maybe in a later model and also I tried to remove the clip because I bent it snagging on something and when I did one of thw 2 screws broke off pretty easily over all a good little light for edc
B****
Mar 30, 2023, 23:38:16
Only improvement would be to offer the new pocket clip as aftermarket part. I've contacted customer service twice and they won't sell it. Two screws seems easy enough to replace, and swap out.
O****
Mar 30, 2023, 23:28:14
I love my arkfeld is great but I wish I could switch the pocket clip to the new arkfeld model clip so now I have to figure out how to find a new clip
J****
Mar 30, 2023, 11:56:20
Favorite light for EDC due its shape and utility. Highly recommended.
J****
Mar 30, 2023, 23:08:20
At first I was Leary about this thing, but after using it and charging it a couple of times I was impressed with it. Then I went to a family function and our nephew really like it and was playing with it so guess what? When we were leaving, I gave it to him to use for a while. So I will be ordering a new one.!
D****
Mar 30, 2023, 21:55:24
It's a Great light i use it all the time
G****
Mar 30, 2023, 21:45:55
- 1
- 2
- 3
- 4
- 5
- 6
- 30
| File Name | Size | Link |
|---|---|---|
| Arkfeld User Manual.pdf | 817KB |
